Specs for Low Profile Direct Drive Centrifugal Roof or Sidewall Exhaust 8 inch 387 CFM LPD081AS
Item #: LPD081AS
0.8
8"
Aluminum
387
Direct
841459
60
0.15
1 Phase
16.5" x 16.5" x 8.5"
15 lbs
387
Variable Speed
120
5-year fan housing warranty, 3-year motor warranty
Florida, USA

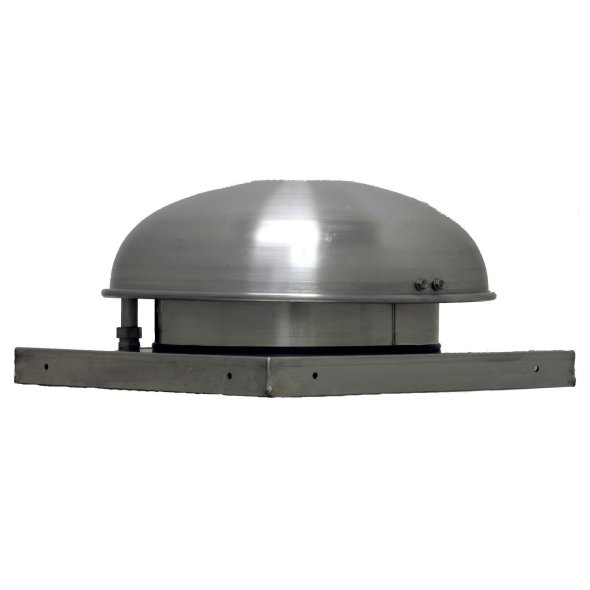

Low Profile Direct Drive Centrifugal Roof or Sidewall Exhaust 8 inch 387 CFM LPD081AS
LPD and direct drive fans are designed to exhaust air in low CFM (up to 420), with high static pressure capability up to 1-3/4". When aesthetics is a concern, the low-profile design of the LPD and LPD-SF is the perfect choice. The LPD and are generally used for bathroom, office, or light commercial ventilation in ducted systems; and can be mounted either on the roof or wall as the application requires. The LPD is designed for curb mounting. The LPD-SF has a flat, self-flashing base for roof or sidewall mounting.
APPLICATIONS General / Clean Air Spark Resistant
FEATURES Exhaust air up to 420 CFM in high static pressure applications up to 1-3/4" w.g. Low profile attractive spun aluminum exterior Direct drive units have low sound levels and quiet operation Non-overloading backward inclined wheel for efficiency at higher static pressures Roof or sidewall mounting options AMCA Air and Sound Licensed cULus 705 Listed 5-year fan housing warranty, 3-year motor warranty
