King PX ComfortCraft Designer Pick-A-Watt Wall Heater 5971 BTU 208V PX2017-WD-R

King refines comfort with the modern architectural design of the PX ComfortCraft series wall heater. The PX series heater delivers nearly 100% efficient electric heat, perfect for large living areas yet whisper quiet enough for bedrooms. The premium combination of an efficient high-mass steel element and whisper quiet squirrel cage blower, offers top of the class performance and years of trouble-free operation.

FEATURES
Tangential blower, delivering 75 CFM, shall be driven by a shaded pole, permanently lubricated, C-frame type motor
Equipped with King's patented thermal overload Smart Limit Protection®, which disconnects elements and motor in the event normal operating temperatures are exceeded
Wall can shall be 20 gauge electro-galvanized steel and shall contain a minimum of three (3) knockouts. Minimum 4"clearance to floors and 6"sidewalls. Zero clearance to combustibles

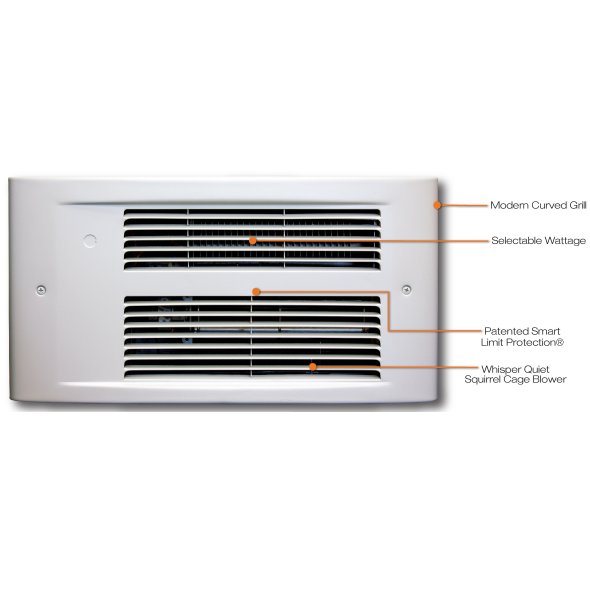

Grill is louvered, one-piece curved front design with rounded edges on all four sides, with duct flange on outlet to achieve maximum heat transfer. The grill shall be epoxy powder-coated in white dove
Approvals: cULus (E41422)
Proudly Made in the USA

• PX-Installation.pdf
• PX_Informational.pdf
