Specs for King LPWC Commercial & Industrial Large Pick-A-Watt Ceiling Heater 13649 BTU 208V LPW2040C-W
Item #: LPW2040C-W
19.2
Aluminum
13,649
185
USA
841459
Yes
22" x 13" x 4"
18 lbs
208
5 Year
4,000
Washington, USA
King LPWC Commercial & Industrial Large Pick-A-Watt Ceiling Heater 13649 BTU 208V LPW2040C-W

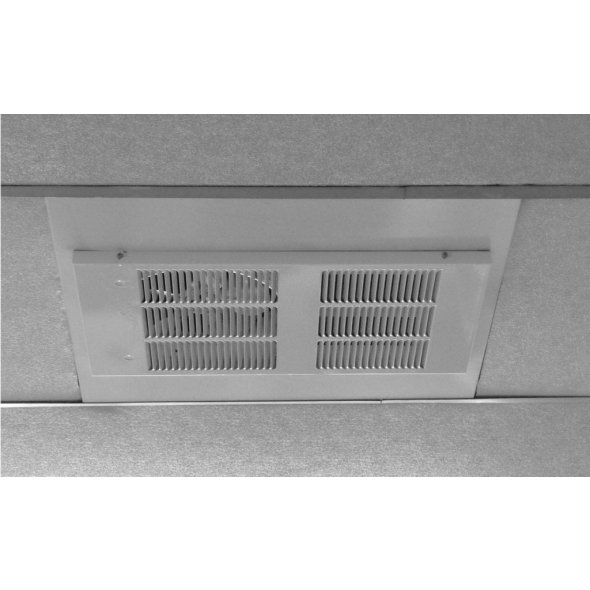

Designed for commercial and industrial applications, the LPWC offers a high-capacity, heavy-duty ceiling heater where wall space is not available. King's exclusive dual Pic-A-Watt steel fin elements allow customers to select from a range of wattage options, tailoring the heater to an area's specific heating requirements. Available wattages range between 1250 to 4500 watts. Now comes standard w/ Heat/Fan/Off tamperproof disconnect switch. It has a fan delay to help dissipate heat from the steel plate fin elements thereby prolonging heater life and increasing energy efficiency.
Features
Motor:Permanently lubricated, unit bearing motor. 20cc of oil. Enclosed motor for long- lasting, trouble-free operation. Thermally protected. 1300 RPM.

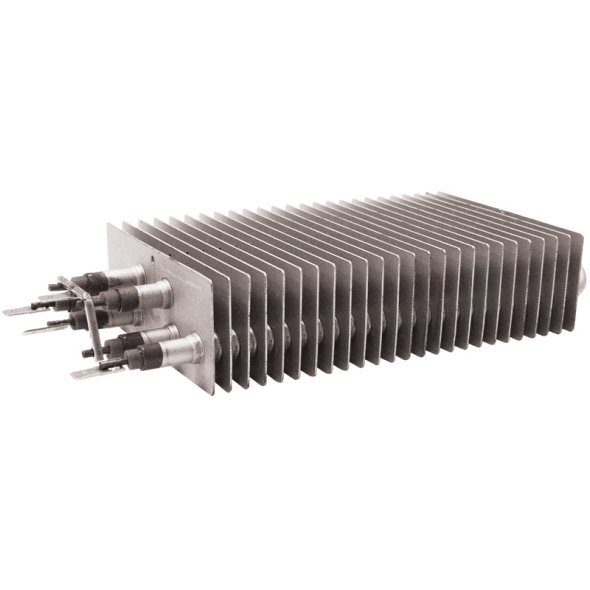

Elements:3 steel sheathed heating tubes in a furnace-brazed, plate-finned, block design containing coiled Ni-Chrome wire embedded in a Magnesium Oxide insulator. Assembly provides up to 7 possible wattage configurations available for field installation selection. The use of external resistors, diodes, or other weak links to obtain multiple wattages will not be accepted.

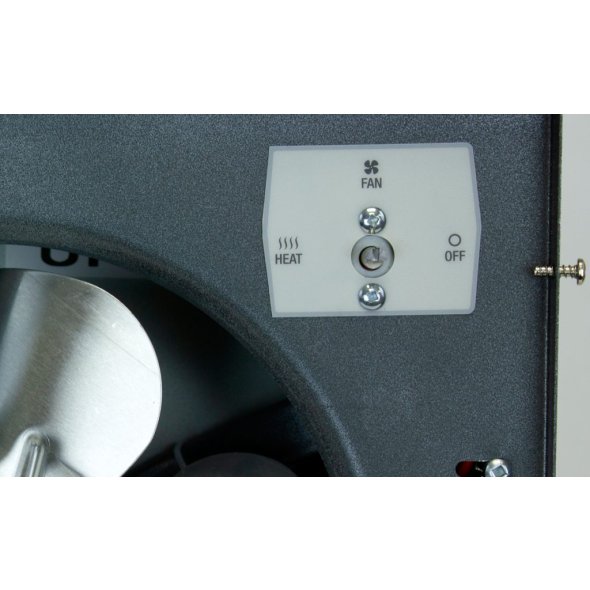

Heat/Fan/Off Disconnect Switch:The DPST off switch provides a "positive off" that disconnects all ungrounded conductors. 3 position switch provides heating and summer fan-only operation.
Thermal Overload:Heaters shall be equipped with King's patented thermal overload Smart Limit Protection, which disconnects elements and motor in the event normal operating temperatures are exceeded. If thermal overload shall remain open until manually reset by turning the heater off for fifteen minutes.
Fan Delay Switch:Fan continues to operate after thermostat shuts off to remove residual heat left in element.
Wall-box:20 GA electro-galvanized steel. Factory installed ground wire. Zero clearance to insulation. Optional surface box.
Grill:20 gauge steel finished in a gloss white powder-coated paint.
