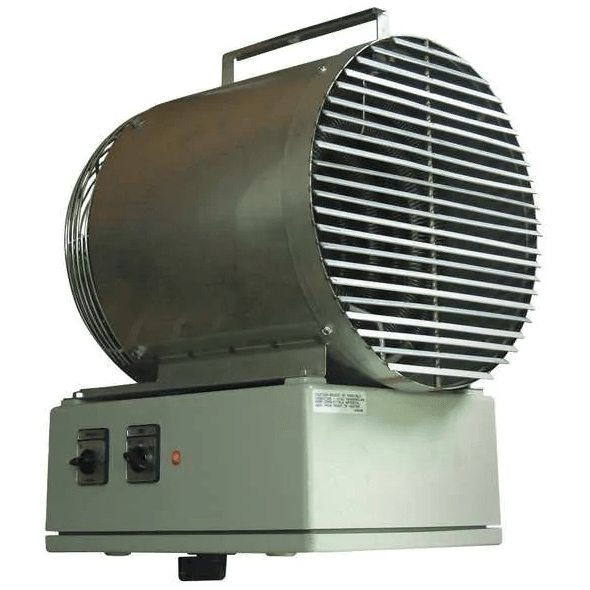

TPI 5500 Washdown Fan Forced Unit Heater 5KW 17100 BTU 480V 3 Phase P3P5505T

NOTE: THIS UNIT IS CUSTOM BUILT AND CANNOT BE CANCELLED OR RETURNED.

The Washdown Series unit heaters are electric unit heaters constructed for use in areas that require washing or hosing of equipment due to dirty or dusty industrial environments in non-hazardous locations. The totally enclosed water-tight construction made with corrosion-resistant material make this series ideal for industrial heating applications. The Washdown Series is constructed with all built-in controls and safety temperature controls wired in a non-metallic NEMA 4x control panel with single-point power connections.

FEATURES
Heavy-duty 304 16 gauge stainless steel shroud
NEMA 4x non-metallic control panel
24-Volt transformer and control panel
3-position switch (off-heat-fan)
Capillary thermostat with stainless steel sensor
Automatic reset thermal cutout
Totally enclosed U.L. listed motor
Pilot light (power on indicator)
Stainless steel finned tubular element. Constructed of 304 stainless rod and fins
Control panel on bottom of unit for ease of installation and service
Disconnect switch with enclosure door interlock
Front grill rotates to direct airflow
Single-point power connection
Fan Blade Epoxy coated Aluminum
Meets all U.L., NEC, and OSHA requirements (when installed as directed)
Corrosion-resistant in high humidity and water-saturated areas
Thermostat temp range: 40°-110°F
Made in U.S.A.
