Specs for King CKL Large Plenum Rated Unit Heater 8 Stage 750671 BTU 480V 3Ph CKL48220-3-8-9.2
Item #: CKL48220-3-8-92
264.6
750,671
9200
USA
841459
Yes
3 Phase
34" x 42" x 72"
1,000 lbs
480
3 Year
220,000
Washington, USA

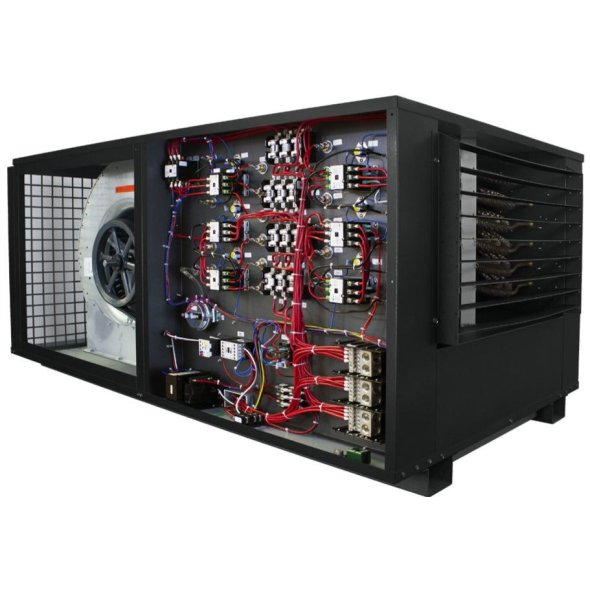

King CKL Large Plenum Rated Unit Heater 8 Stage 750671 BTU 480V 3Ph CKL48220-3-8-9.2
NOTE: These units are built to order and non-returnable.
This large kW special application unit heater is approved for use in concealed areas of buildings.It is specifically designed for highrise and office buildings, factories, auto body shops, food processing plants, plating shops and machine shops. This heater may be installed in inaccessible areas such as between a concrete ceiling and a drop tile ceiling, in a open plenum or ducted system. The heater is designed to withstand a dirty, dusty, moist or mildly corrosive environment.Not intended for use where flammable vapors, gases, liquids or other combustibles are, or may be present.
Features
Proudly Made in USA
Construction:The heater case is fabricated from 16 gauge high tensile electro-galvanized Steel forming a durable unibody cabinet. Heater is finished with a rust inhibiting epoxy coating.
Air Outlet Louver:Fixed louvers
Intake and Discharge Screen:Heavy gauge Steel screen protects against foreign objects entering the heater. A filter is provided to prevent dirt and dust build-up in the heater.
Air Filter:Convenient access for replacement of standard filter. Filter not included.
N.E.M.A. 12 Wiring Compartment:The wiring compartment is sealed with a 1¼" high density polyurethane gasket. This provides excellent protection against moisture, dust and dirt from invading the electrical components and wiring. All optional control accessories are N.E.M.A. 12 rated.
Spiral Fin Elements:The metal sheath element is brazed with spiral fins then molded in to a coil configuration. This combination produces the best heat transfer while eliminating the potential for hot spots by positioning the element in the maximum airflow stream.

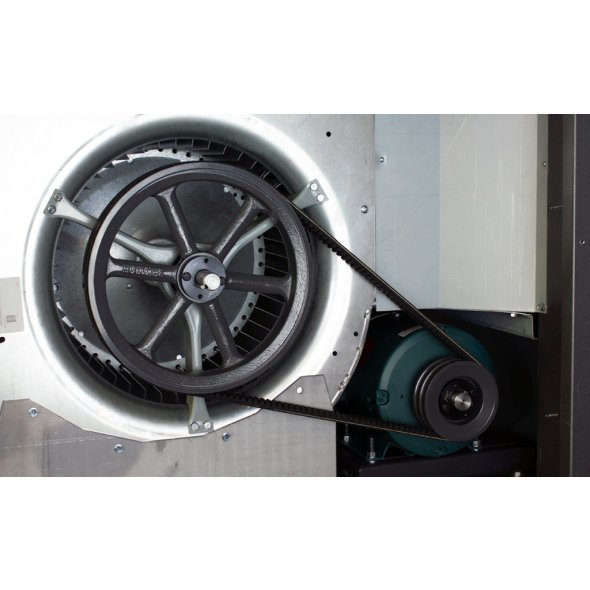

Blower & Motor:Totally enclosed outdoor ball bearing fan motor. Permanently lubricated, class B insulation, auto-protected, permanent split capacitor and 60° C ambient. Large capacity dual inlet blower handles high static pressure and moves large air volume. Motor leads are enclosed in a seal tight raceway to prolong equipment life and reduce maintenance.
Air Intake Temperature Control:A built-in thermostat located at the intake blower is factory set at 100°F which prevents the heater from operating when the ambient temperature exceeds this limit. This will prevent the heater from wasting energy and is an extra measure of safety.
Auto-Reset Thermal Cutout:Power is disconnected from the heater if an overheated condition occurs. The element is re-energized automatically when the normal operating temperature returns.
Internal Controls:Magnetic contactors are standard on all units. A transformer is provided for 24 Volt control. This enables the customer to use a standard low voltage thermostat. Sub circuit fusing is provided when the heater ampacity exceeds 48 Amps to comply with UL standards. A fan delay is provided standard on all models to dissipate residual heat from the heating elements.
Easy Wiring:A large wiring compartment with easy access allows for quick installation.
Mounting:The CKL heater comes with frame mounts.
Approvals:ETL Certified to comply with standard for Heating and Cooling Equipment ANSI/UL 1995 fourth edition. Meets stringent City of Chicago codes for plenum use
