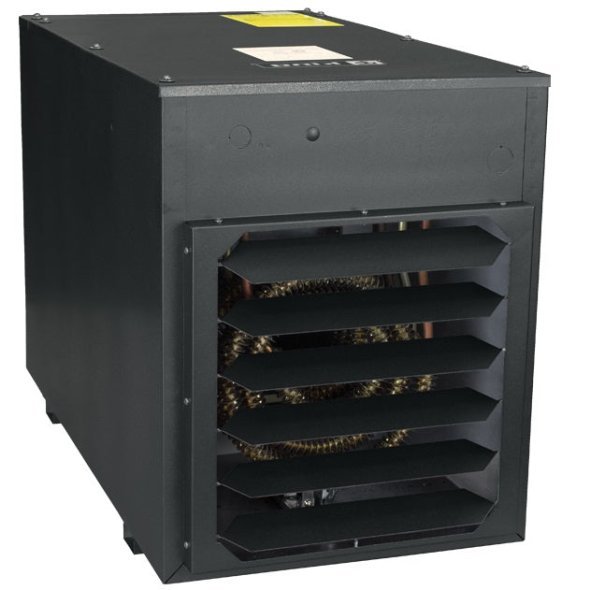

King CK Plenum Rated Unit Heater w/ Thermostat & Disconnect Switch 51182 BTU 480V 3Ph CK4815-3-SSR25-DS40-T-DS

NOTE: THIS UNIT IS FINAL SALE AND CANNOT BE RETURNED OR CANCELLED. REQUIRES THERMOSTAT FOR OPERATION.

The CK model is a special application heater approved for use in concealed areas of buildings such as an area between a finished ceiling and drop ceiling, in an open plenum or in a ducted system. It is specifically designed for high-rise and office buildings, factories, auto body shops, food processing plants, plating shops, and machine shops. It is engineered to withstand dirty, dusty, moist or even mildly corrosive environments, and rated for zero clearance mounting against any surface.

Not intended for use where flammable vapors, gases, liquids or other combustibles are, or may be present.

FEATURES

Proudly Made in USA

Case is made from high tensile 18 gauge electrogalvanized steel. Heater is finished with a rust inhibiting epoxy coating.

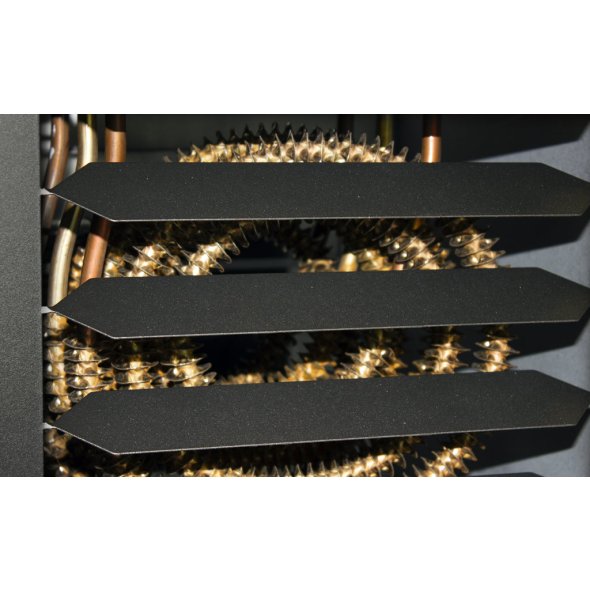

Adjustable outlet louver

Heavy gauge steel screen protects against foreign objects entering the heater. A 1" x 16" x 20" filter is provided to prevent dirt and dust build up in the heater.

The wiring compartment is sealed with a ¼" high density polyurethane gasket. All optional control accessories are N.E.M.A. 12 rated.

Power is disconnected from the element if an overheated condition occurs.

Large wiring compartment allows quick access

CK heater comes with two brackets welded on top to be hung from the ceiling or beam using threaded rod.

Approvals: ETL Certified to comply with standard for Heating and Cooling Equipment ANSI/UL 1995 fourth edition.
