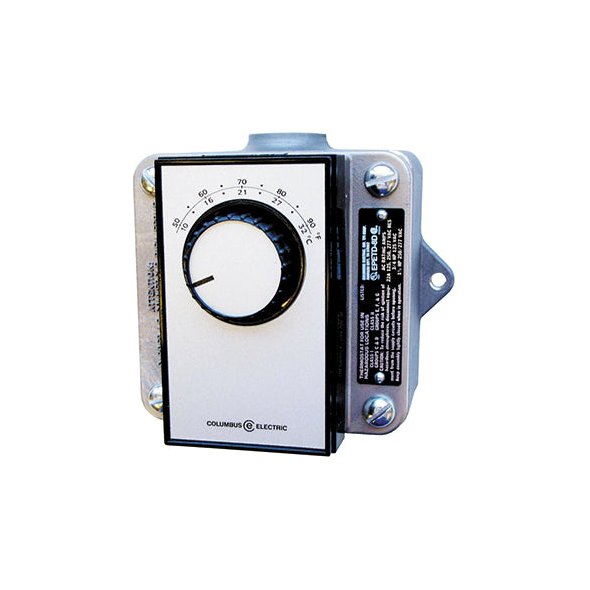

Hazardous Location Thermostat Single Pole Double Throw Bi-Metal 50-90 Deg F 120-277 VAC EPETD8S

FEATURES
SPDT - Bi-Metal
Heat or cool compatible
Celsius and Fahrenheit temperature scale
Bi-Metal or capillary sensor
Snap action switch
Casting tapped top and bottom for 0.75" conduit
0.5" thick cast aluminum housing
All EPET optional thermostats manufactured with anti-static plastic
Dimension 5.75" x 6.375" x 5.57"
Made in U.S.A.
Motor Rating (full load): 3/4 HP @ 125V, 1-1/2 HP @ 250V
Pilot Duty Rating 125VA @ 24VAC
NEMA Class Seven Div. 1 Approved
Class I Group C & D, Class II Group E, F, & G
