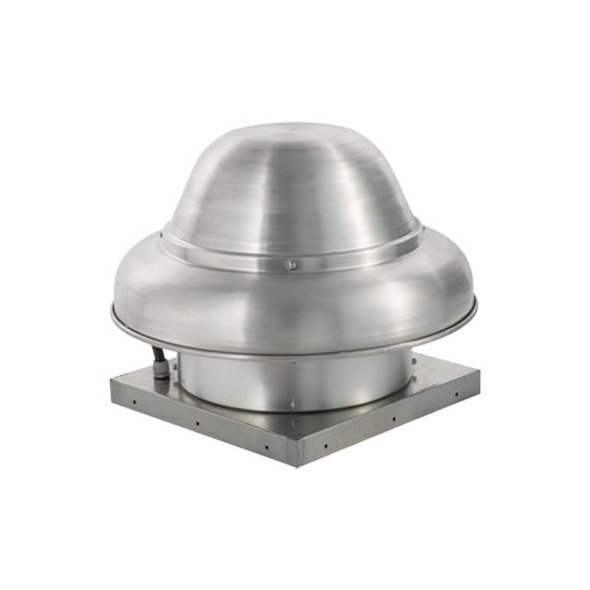

FloAire Centrifugal Downblast Roof Exhaust Fan 13.75 inch 1850 CFM Direct Drive DR50H

FloAire

FloAire Centrifugal Downblast Roof Exhaust Fan 13.75 inch 1850 CFM Direct Drive DR50H

Item #: DR50H

Blade Diameter

13.75"

CFM

1850

Voltage

120 / 240

Drive

Direct

USD 626.24$626.24

Build Time: 10 to 15 Business Days

Ships By: Fedex Freight

Highly recommended add-ons:

These can only be purchased alongside the main item

Addons

Galv. roof curb 12" high uninsulated 19.5" O.D. sq.

$123.78

More Info

each

Add to Quote

lowest price
Guarantee

Certified Dealer

Quality expert advice

Specs
Product Details
Documents

Specs for FloAire Centrifugal Downblast Roof Exhaust Fan 13.75 inch 1850 CFM Direct Drive DR50H

Item #: DR50H

Amps: 8.4

Blade Diameter: 13.75"

CFM: 1850

Country of Origin: USA

Drive Type: Direct

Harmonized System Code: 841459

Hertz: 60

Horsepower: 0.5

Made in the USA: Yes

Phase: 1 Phase

Product Dimensions: 30" x 30" x 22"

Product Weight: 50 lbs

RPM: 1213

Speed: 1 Speed

Voltage: 120 / 240

Warranty: 2 Year

Ships From: Pennsylvania, USA

FloAire Centrifugal Downblast Roof Exhaust Fan 13.75 inch 1850 CFM Direct Drive DR50H

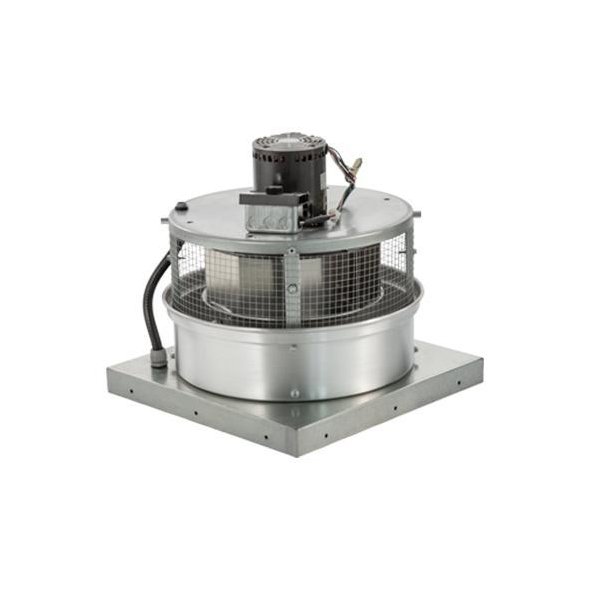

Centrifugal Direct Drive Fans are designed to pull more air under higher static pressures. The efficient, balanced wheel and air inlet design contribute to maintaining low noise levels and extended motor life. These fans are especially suited for installation in hospitals, schools, motels and hotels, auditoriums, office buildings and light industrial areas.

All units up to 18" wheel and some 20 and 24" wheel can be wall mounted

FEATURES
Spun aluminum housing for rust-free, weather resistant durability
Standard bird screen
Non overloading backward inclined wheels, blades and inlets fabricated from aluminum
Wire conduit to provide a clear channel for electrical connections
Safety disconnect
