Specs for Hazardous Location Ventilation Blower 8 inch 890 CFM 9513-05
Item #: 9513-05
8"
Plastic
890
USA
841459
60
0.33
Yes
I, II
1, 2
C, D, F, G
15" x 14" x 14"
24 lbs
120
South Carolina, USA

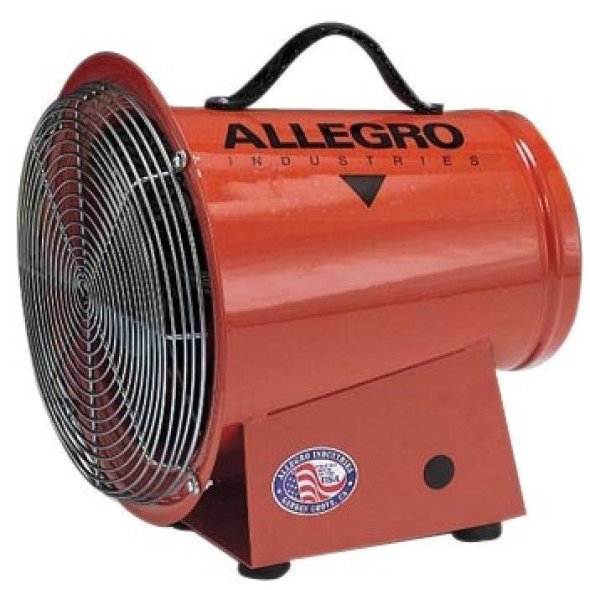

Hazardous Location Ventilation Blower 8 inch 890 CFM 9513-05
NOTE: HAZARDOUS LOCATION FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.
This smart compact design allows for easy use and storage without sacrificing airflow. for applications where explosion-proof equipment is needed. Certified to CSA Standard C22.2 No. 113.
FEATURES: Epoxy powder coated in "safety orange" Flange on intake side for optional inlet adapter 18 gauge steel housing with welded motor mount construction Steel/chrome plated grill Carry handle made of 3-ply rubber belting Equipped with four rubber feet
FAN: Aluminum hub Anti-Static glass reinforced Polyamide (PAGAS) six blade fan Moving fan mounted 1 5/8" (4.12cm) from grill for safety, 5/16" (.79cm) grill gap
HAZARDOUS LOCATION RATING: Class 1, Divisions:1 & 2, Groups C & D Class II, Division: 1 & 2, Groups F & G
** FLOW RATE (CFM calculated using 15' (4.57m) of 8' (20.3cm) ducting):
DIMENSIONS: 15" (38.1 cm) h x 13 5/8" (34.6 cm) w x 14" (35.5 cm) l
