Specs for Explosion Proof Metal Confined Space Blower Axial Ventilator 12 inch 1636 CFM 9509-01
Item #: 9509-01
12"
1636
USA
841459
60
0.33
Yes
I, II
1, 2
C, D, F, G
15" x 12" x 16"
32 lbs
120
South Carolina, USA

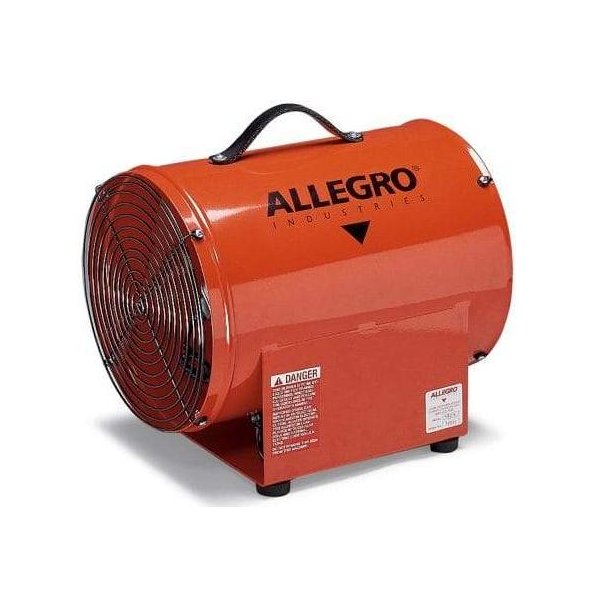

Explosion Proof Metal Confined Space Blower Axial Ventilator 12 inch 1636 CFM 9509-01
NOTE: HAZARDOUS LOCATION FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.
For applications requiring larger amounts of air output the 12 inch explosion-proof blower offers portability and minimal weight. Certified to CSA Standard C22.2 No. 113.
FEATURES: Complete unit epoxy powder coated in orange Attached duct at either flange for intake or exhaust ventilation 16 gauge cold rolled steel housing 14 gauge steel base 3 ply rubber carrying handle Steel black powder coated grill Equipped with four rubber feet
FAN: Anti-Static glass reinforced Polyimide (PAGAS) three blade fan, with aluminum hub
MOTOR: UL Recognized, CSA Certified 25 ft (7.62m) 18/3 AWG SJOOW 90C 300V Neoprene medium duty NEMA 125V plug, grounded 3-prong. ECP model configuration
HAZARDOUS LOCATION RATING Class: 1, Division 1 & 2, Groups: C & D Class: 11, Division 1 & 2, Groups: F & G
** FLOW RATE (CFM calculated using 15' (4.57m) of 12" (30.4cm) ducting):
