Specs for Explosion Proof Axial Ventilation Blower Utility Fan 16 inch 4839 CFM 9515-50EX
Item #: 9515-50EX
16"
Plastic
4839
USA
841459
60
1.5
Yes
I, II
1, 2
C, D, F, G
19" x 18" x 18"
72 lbs
2926 ft²
120 / 240
South Carolina, USA

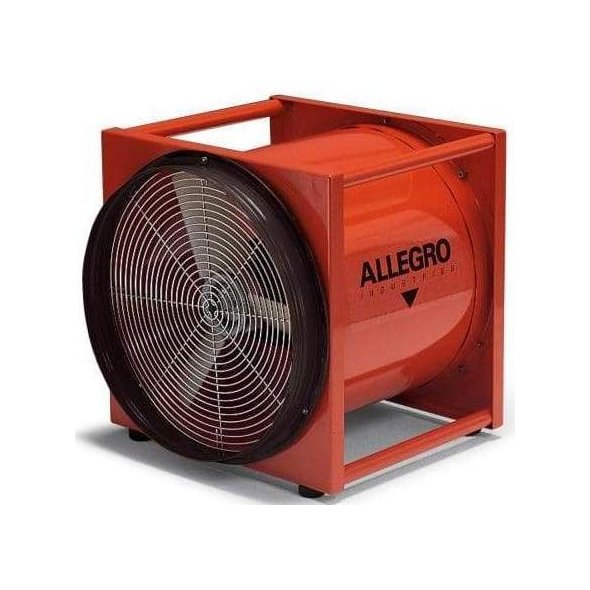

Explosion Proof Axial Ventilation Blower Utility Fan 16 inch 4839 CFM 9515-50EX
NOTE: HAZARDOUS LOCATION FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED
Designed for applications requiring a maximum amount of output. Made from 16-gauge cold rolled steel housing and powder-coated in safety orange with 3 blade impeller. Powered by a 1 ½ hp, 3450 RPM, UL listed and CSA certified motor. Comes with an interchangeable flange for intake or exhaust mounting, integrated carry handles for easy transport, a steel/zinc plated grill and four rubber feet are added features for this powerhouse unit.
Construction:
Complete unit epoxy powder-coated in "safety orange"
Interchangeable flange for intake or exhaust side mounting
16-gauge cold rolled steel housing
Integrated carry handles
Steel grill (zinc plated), equipped with four rubber feet
Duct grounding plug
NOTE: EX blowers require an explosion-proof socket (125V PN: 9503-03)
Cord: 25' (7.63 m) 12/3 AWG SOOW 600V
Plug: NEMA 20 Amp, 125V or 250V plug, Explosion-Proof
Motor:
HP:
1 ½ HP
Certifications:
UL Listed, CSA Certified
Voltage/Hz:
115/208 - 230V AC, 60 Hz, Single Phase
RPM:
3450
Current Draw:
15.4 / 8.4 - 7.7A
Protection:
Thermal, Automatic Reset
Fan: Anti-Static glass reinforced polyamide (PAGAS) three blade fan with aluminum hub
ACCESSORIES:
Ducting Black, single-ply, neoprene coated, statically conductive vinyl/polyester material, temp. resistant up to 250° F (121.1° C) Retractable, non-collapsible design, Class 1 hard drawn spring steel wire helix (meets ASTM 227 specs) Grounding cable on both ends
WARNING: When using statically conductive ducting, the integrated grounding wire must be properly grounded to the blower chassis OR linked to any additional grounding wire or duct used (as shown). Refer to User Manual for detailed instructions.
EX Rated Receptacle Iron mounting box with triple coat finish and spring-loaded door to keep out dust when in use. When plug is not in use, a neoprene gasket inside receptacle seals around plug to keep out dirt, water, dust, etc. PN 9503-03: 125V only
EX Rated Extension Cords PN 9540-50EX: 125V
HAZARDOUS LOCATION RATING:
Motor: Class I, Groups C, D; Class II, Groups F, G
EX Plug: Class I, Div. 1&2, Groups B, C, D; Class II, Div. 1&2, Groups F, G
