Specs for Explosion Proof Axial Confined Space Blower 16 inch w/ Canister & 25' Duct 2849 CFM 9558-25
Item #: 9558-25
4.8
16"
2849
USA
25
841459
60
0.75
Yes
I, II
1, 2
C, D, F, G
23" x 23" x 34"
60 lbs
120 / 208 / 240
South Carolina, USA

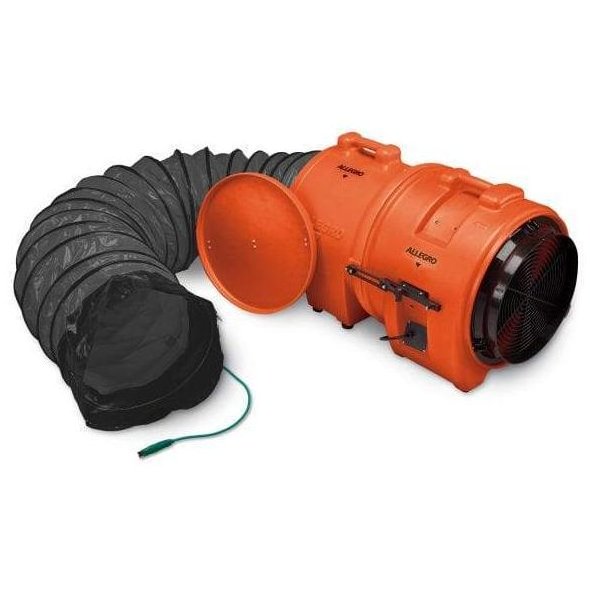

Explosion Proof Axial Confined Space Blower 16 inch w/ Canister & 25' Duct 2849 CFM 9558-25
NOTE: HAZARDOUS LOCATION FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.
This electric, explosion-proof blower is ideally suited for large confinedspacesin statically conductive environments.Its single phase motor includes a NEMA rated 115V plug for use with explosion-proof socket (sold separately). The bottom enclosure ensures safe and convenient storage of electrical components. The quick-connect clipping system allows workers to attach canister, tools-free, to input side for powerful extraction or output side for ventilation.Meets Class I, Divisions 1 and 2, Groups C and D and Class II, Divisions 1 and 2, Groups F and G Hazardous Location Requirements.Certified to CSA Standard C22.2 No.113.
FEATURES:
Polyethylene "safety orange" color housing Lightweight, corrosion-, UV- and chemical-resistant Super quiet Carry handle molded into blower and canister housing Black plastic grills 25' (7.62 m) power cord NEMA 5-20 ECP type plug
FAN: Anti-static glass reinforced polyamide (PAGAS), three blade fan with aluminum hub
HAZARDOUS LOCATION RATING Class: 1, Division 1 & 2, Groups: C & D Class: 11, Division 1 & 2, Groups: F & G STATICALLY CONDUCTIVE DUCTING
Black single-ply lightweight vinyl/polyester, coated with neoprene 250°F (121.1°C) temperature resistant
Retractable, non-collapsible design
FLOW RATES: (CFM calculated using 15' (4.57 m) of 16" (40.6 cm) ducting) Free Air: 2849 CFM One 90Deg Bend: 2290 CFM Two 90Deg Bends: 1951 CFM
