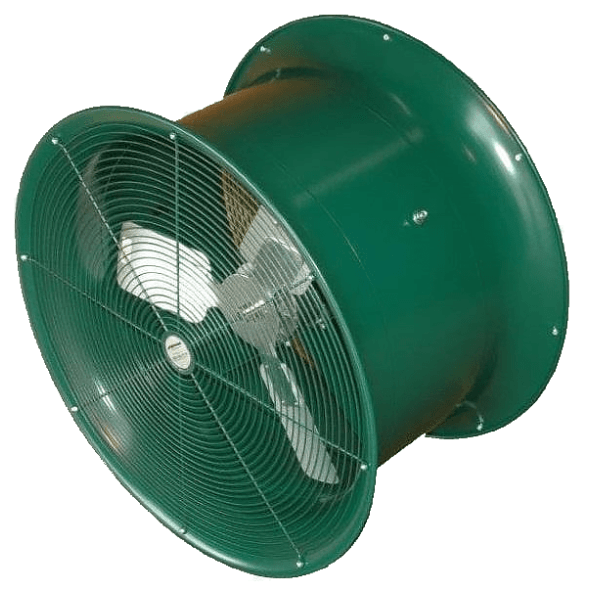

Specs for AirMax Explosion Proof High Velocity Blower Fan 22 inch 12000 CFM 3 Phase (choose mount) AM-2223-XP - No Mount
Item #: AM-2223-XP-0
22"
Aluminum
12000
USA
Direct
841459
60
2
Yes
3 Phase
29" x 18" x 29"
75 lbs
1 Speed
208 / 240 / 480
South Carolina, USA
AirMax Explosion Proof High Velocity Blower Fan 22 inch 12000 CFM 3 Phase (choose mount) AM-2223-XP - No Mount
MOTOR CLASSIFICATION Class 2, Division 1, Groups E, F & G
FEATURES The motor and blade are mounted in a 16 galvanized steel venturi/housing that is 22 inches in diameter at the widest point. Guards are 3/8 inch spaced concentric steel wire guards that meet OSHA requirements are standard All fan products are powder coated All hardware is zinc coated grade 5 or better and nuts are nylon lock nuts The 2-hp unit is rated at approximately 12,000 CFM 660 FPM at 20 ft. and 246 FPM at 50 ft. High-grade zinc-plated hardware and durable powder coat finish for all mounting options
