Specs for Hazardous Location Circulator Fan 24 inch 7980 CFM 24CFO-HL
Item #: 24CFO-HL
9.8 / 4.9
24"
Aluminum
7980
USA
Direct
841459
60
0.5
Yes
I, II
1, 2
C, D, E, F, G
1 Phase
27" x 27" x 19"
50 lbs
7980
1 Speed
120 / 208 / 240
2 Year
Minnesota, USA

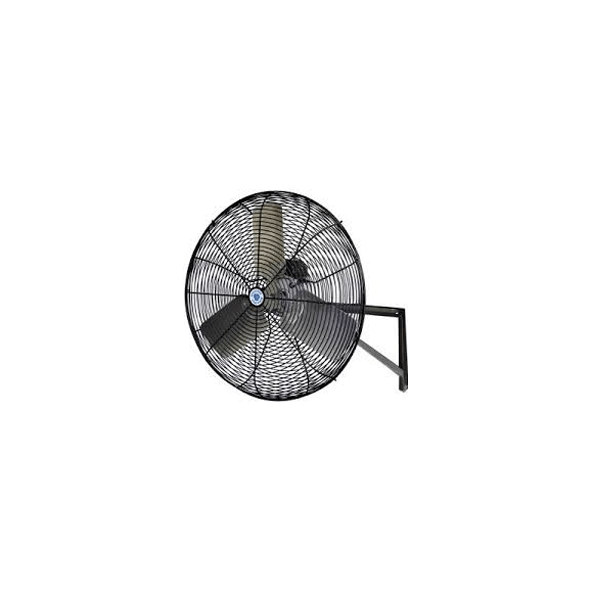

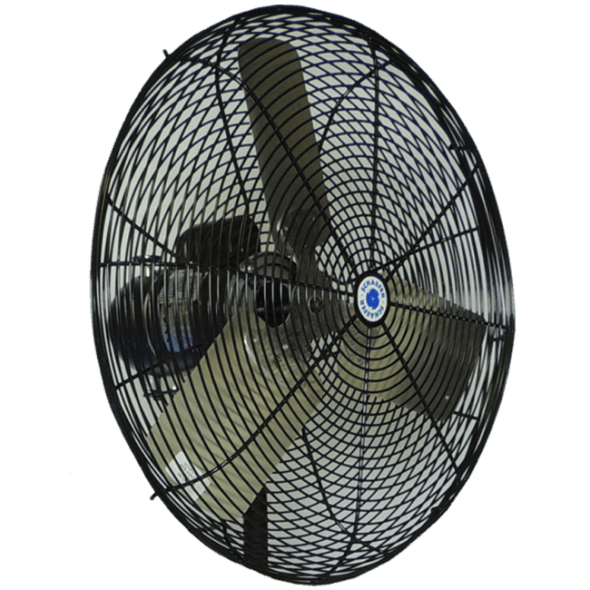

Hazardous Location Circulator Fan 24 inch 7980 CFM 24CFO-HL
NOTE: HAZARDOUS LOCATION FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.
For spot cooling in atmospheres containing flammable or explosive vapors, gases, or dusts. Motor is UL listed for Class 1, division 1, Groups C & C, and Class 2, Division 1, Groups E, F, & G for flammable vapors combustible dust environments. Meets OSHA safety regulations while delivering maximum air flow in wide range of hazardous location applications.
FEATURES Non-sparking aluminum blades for increased safety Powder coated steel guards for corrosion resistance and durability Thermally protected, heavy-duty, maintenance free, 1 speed motor for performance Matched high quality motors and blades for maximum airflow Must be hardwired; cord not included Two year warranty
DIMENSIONS 27" x 27" x 13"
