Specs for SPARROW - Panel Exhaust Fan 20 inch 3692 CFM Variable Speed PF201V
Item #: PF201V
3.8 / 1.9
20"
Aluminum
3692
Canada
Direct
841459
60
0.33
Yes
1 Phase
26" x 26" x 12"
39 lbs
Variable Speed
120 / 240
1 Year
New York, USA

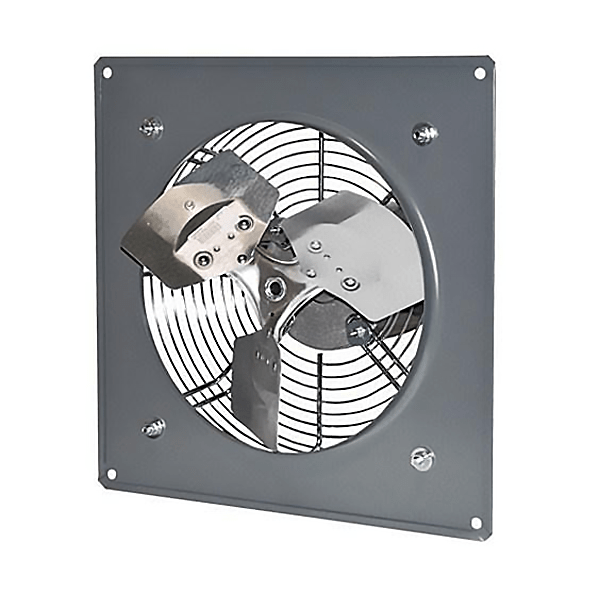

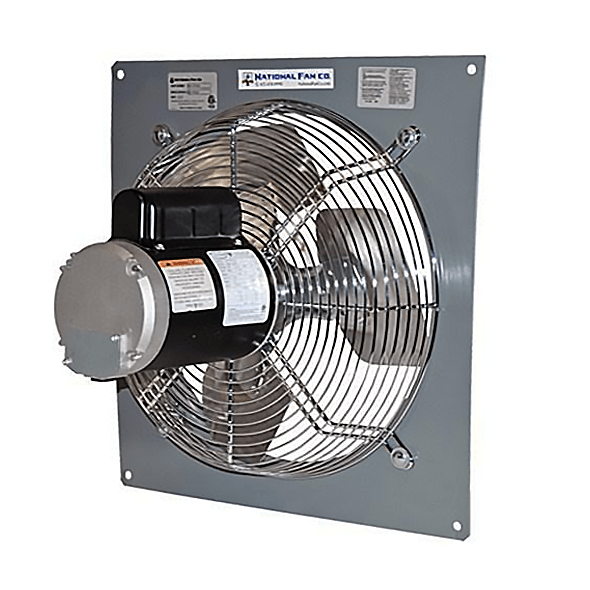

SPARROW - Panel Exhaust Fan 20 inch 3692 CFM Variable Speed PF201V
All variable speed fans will run at a single speed unless used with a controller. Please see our control options here for a control that pairs with this fan.
Fans are sturdily constructed, direct drive, horizontal discharge for industrial, commercial and farm applications.
Features: sturdily constructed direct drive, horizontal discharge fan. durable powder coat finish. standard heavy duty OSHA motor mount/guard. motors are totally enclosed, with overload protection.
*Note: the motor full load amperage ratings are meant to be used as a general guideline only. the ratings are from the primary motor supplier. these amperage ratings may vary slightly if a different motor supplier is used. it is also possible that a motor manufacture may modify / improve / update a motor in which the amperage rating will change slightly.
DIMENSIONS: *Sizes are approximates and may vary based on motor manufacturer A = 25-1/4"B = 11-1/4" C = 24"
