Specs for HAWKEYE - Downblast Exhauster w/ EC Motor 16.50 inch 3180 CFM Direct Drive
Item #: XSA165-DD100EC
16.5"
Aluminum
3180
Canada
Direct
841459
60
1
Yes
1 Phase
28" x 37" x 37"
100 lbs
Variable Speed
120 / 240
1 Year
New York, USA

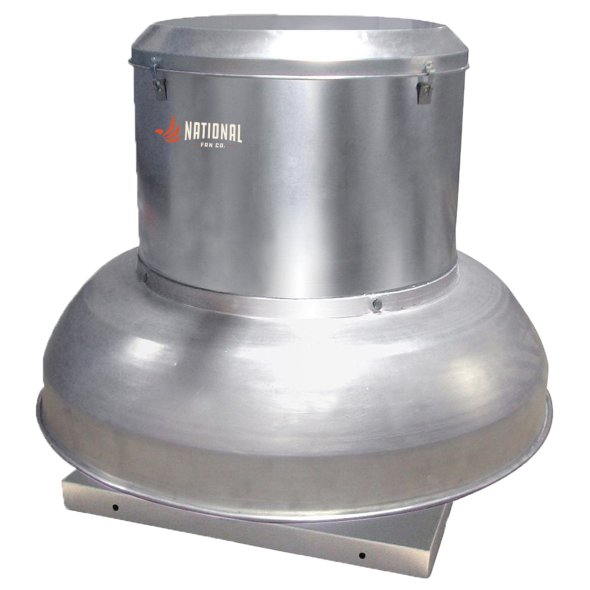

HAWKEYE - Downblast Exhauster w/ EC Motor 16.50 inch 3180 CFM Direct Drive
Our new spun aluminum exhausters are ideal for exhausting air from factories, offices, warehouses or commercial buildings. The XSA Series spun aluminum exhaust fan can be used as either a roof top or a wall mount exhaust fan.
FEATURES Spun aluminum housing will not rust, chip or peel. Aluminum backward inclined wheel is non-overloading. All units can be wall mounted. Quick release latches for easy motor access. Standard bird screen. Direct drive, single or variable speed 120/240V motors are standard.
EC MOTORS ONLY EC motors offer true variable speed operation and up to 70% energy savings over PSC motors. On board speed adjustment allows simple setup and balancing with LED display. Can be controlled remotely up to 100' using a remote mount potentiometer or 0-10V.
DIMENSIONS A = 27.13" B = 36.25" C = 24.75" D = 5" E = 2" F = 4" G = 0.44"
