National Fan

FALCON - Roof Exhaust Fan 24 inch 10500 CFM 3 Phase Direct Drive NA24-H-3-T

Item #: NA24-H-3-T

Blade Diameter

24"

CFM

7425

Voltage

240 / 480

Drive

Direct

Note: This item is built to order and non-returnable

Qty	Unit price

1	$2,565.32
2	$2,488.36
4	$2,437.05
7	$2,385.75

List: $2,758.40

Price: Only $2,565.32

You Save 7% ($193.08)

Build Time: 8 Weeks

Ships By: Fedex Freight

Highly recommended add-ons:

These can only be purchased alongside the main item

Addons

Add to Quote

lowest price
Guarantee

Certified Dealer

Quality expert advice

Specs for FALCON - Roof Exhaust Fan 24 inch 10500 CFM 3 Phase Direct Drive NA24-H-3-T

Item #: NA24-H-3-T

Blade Diameter: 24"

Blade Material: Cast Aluminum

CFM: 7425

Country of Origin: USA

Drive Type: Direct

Harmonized System Code: 841459

Hertz: 60

Horsepower: 3

Made in the USA: Yes

Motor Type: Explosion Proof

Phase: 3 Phase

Product Dimensions: 40" x 39" x 39"

Product Weight: 250 lbs

Speed: 1 Speed

Voltage: 240 / 480

Warranty: 1 Year

Ships From: Ohio, USA

FALCON - Roof Exhaust Fan 24 inch 10500 CFM 3 Phase Direct Drive NA24-H-3-T

Designed for general ventilation and smoke and fume removal where lower cost and less maintenance are a priority.

FEATURES

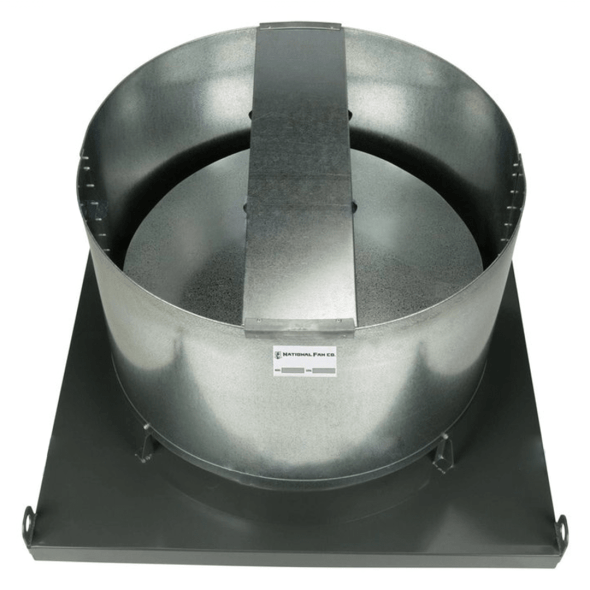

Ruggedly constructed steel curb cap including spun venture section for efficient air flow

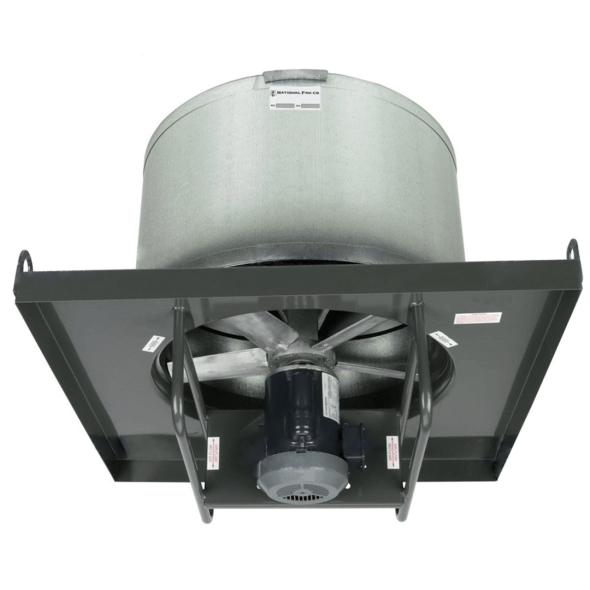

Cast aluminum spark-resistant propellers are standard and suitable for use in hazardous locations.
Butterfly damper section, mill galvanized construction, with damper blades that open when fan is energized and close weather tight when unit is off. Dampers rotate in nylon bearings on a stainless steel axle.

CURB DIMENSIONS
O.D. = 37.5"sq.
I.D. = 34.5"sq.
MIN. ROOF HOLE SIZE = 34"sq.

ROOF CURB NOTE
1. Standard Curb Base for roof Ventilator: Insulated, 8" High with Wood Nailer
2. NOT for Installation on Corrugated roofing or Standing Seam Roofs
