Specs for DDA Tube Axial Fan 30 inch 8680 CFM Direct Drive 3 Phase DDA30T30100CM
Item #: DDA30T30100CM
3.4 / 1.7
30"
Cast Aluminum
8680
US
Direct
841459
60 / 50
1
Yes
3 Phase
34" x 34" x 21"
138 lbs
8680
1 Speed
240 / 480
1 Year
New York, USA

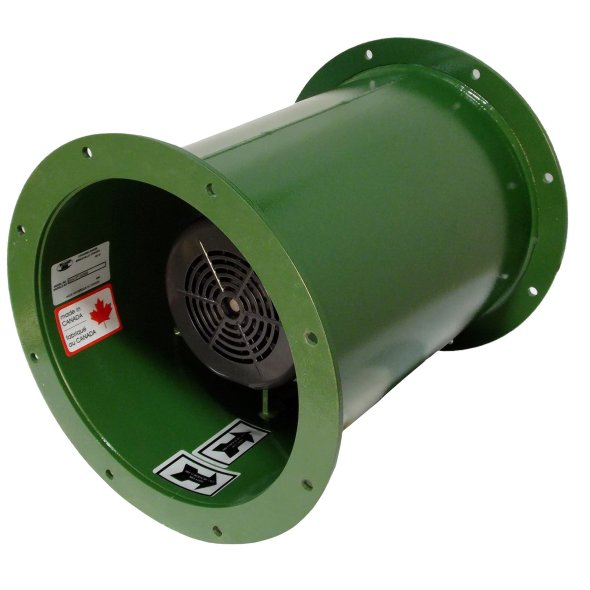

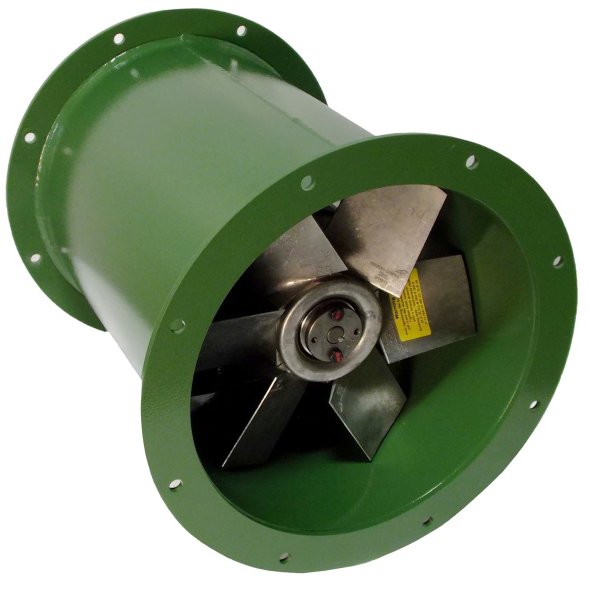

DDA Tube Axial Fan 30 inch 8680 CFM Direct Drive 3 Phase DDA30T30100CM
NOTE: FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.
Used in applications where motor in air stream is satisfactory
FEATURES Direct Drive for minimum maintenance and maximum efficiency. TEFC motors are standard.Cast aluminum blades are standard Maximum Temperature 100° F dBA ratings shown are measured at 0" static pressure, and should be used as a guideline only Fan blades tested in accordance with AMCA standard 210, figure 12.
