Specs for Square Inline Duct Fan 8 inch 756 CFM Belt Drive 3 Phase SQB08ML3S - 230V
Item #: SQB08ML3S-230V
8"
Aluminum
756
USA
Belt
841459
0.25
Yes
3 Phase

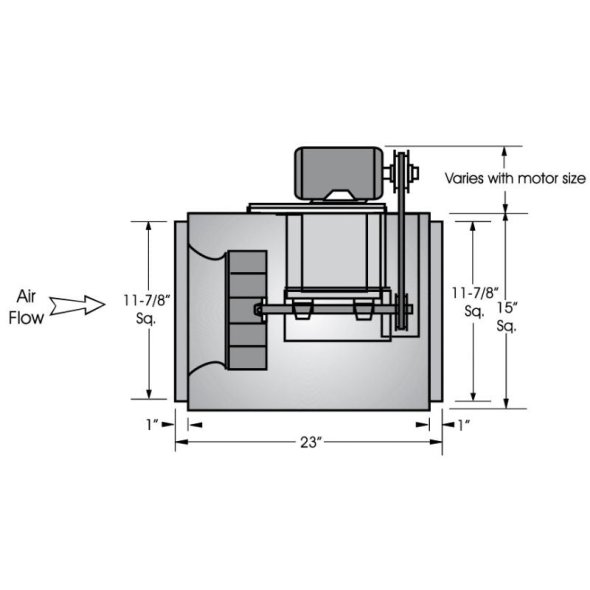

23" x 23" x 15"
75 lbs
756
1 Speed
240 / 480
1 Year
Florida, USA

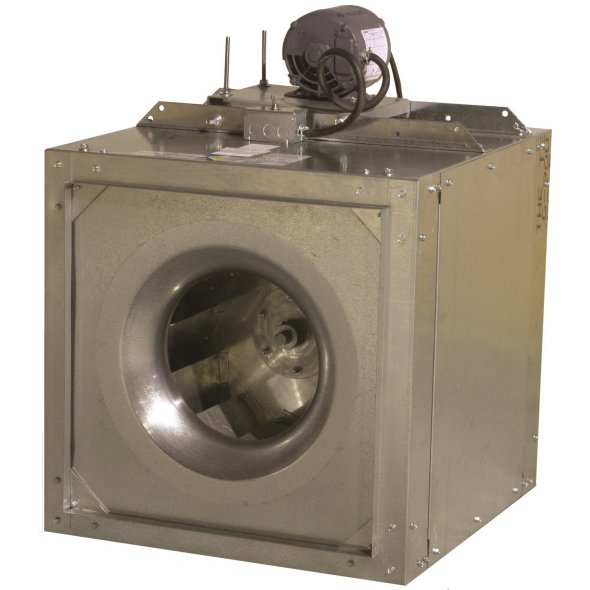

Square Inline Duct Fan 8 inch 756 CFM Belt Drive 3 Phase SQB08ML3S - 230V
SQB units are the perfect selection for clean air applications where space is a leading consideration. The compact housing with removable access doors and side discharge can be mounted in any orientation. AMCA licensed performance and UL listing assure that you've made a reliable selection.
FEATURES Temperature rating up to 210° Belt drives permit easy performance adjustments when needed Ideal for applications where space is limited Non-overloading backward inclined wheel for efficiency at higher static pressures Heavy galvanized steel housing Corrosion resistant fasteners
