Specs for Square Inline Duct Fan 36 inch 12035 CFM Belt Drive SQB36VH1S
Item #: SQB36VH1S
36"
Aluminum
12035
USA
Belt
841459
2
Yes
3 Phase

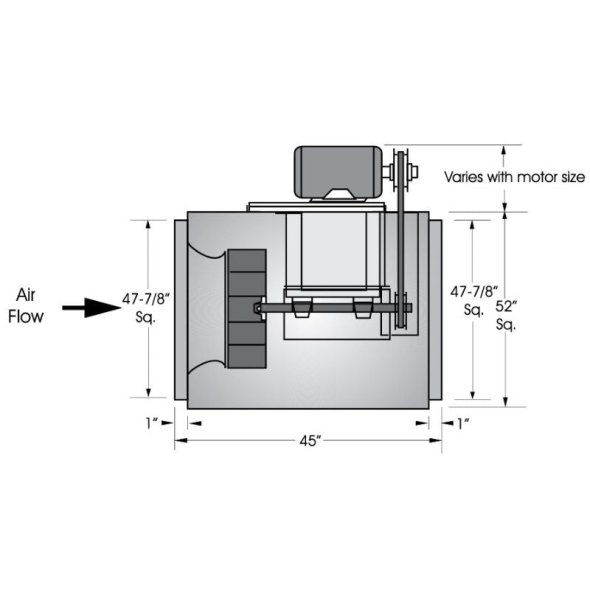

45" x 45" x 52"
420 lbs
12035
1 Speed
240 / 480
1 Year
Florida, USA

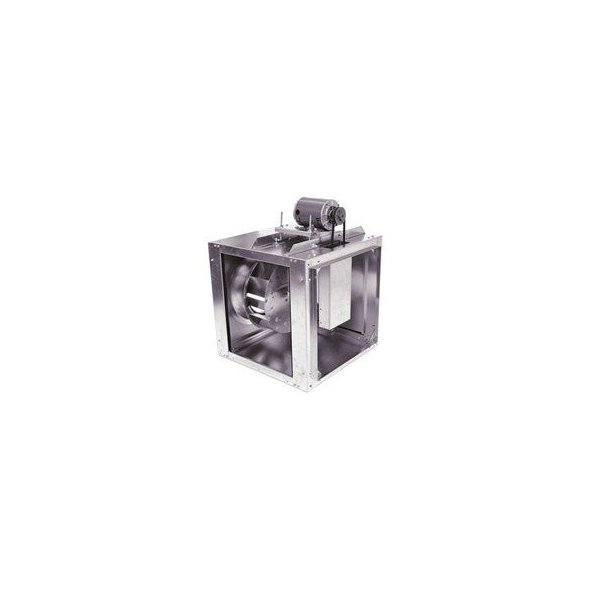

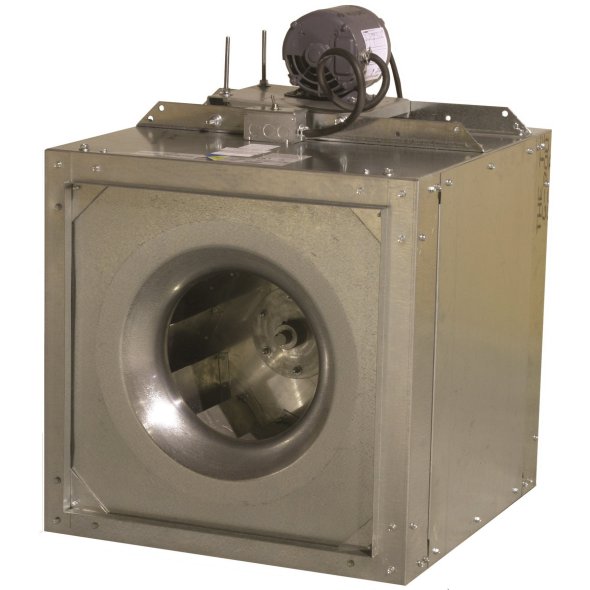

Square Inline Duct Fan 36 inch 12035 CFM Belt Drive SQB36VH1S
SQB units are the perfect selection for clean air applications where space is a leading consideration. The compact housing with removable access doors and side discharge can be mounted in any orientation. AMCA licensed performance and UL listing assure that you've made a reliable selection.
FEATURES Temperature rating up to 210° Belt drives permit easy performance adjustments when needed Ideal for applications where space is limited Non-overloading backward inclined wheel for efficiency at higher static pressures Heavy galvanized steel housing Corrosion resistant fasteners
