Specs for Confined Space Ventilator Fan 8 inch 778 CFM 9534
Item #: 9534
3.6
8"
778
USA
Direct
841459
60
0.33
Yes
1 Phase
10" x 8" x 12"
28 lbs
120
South Carolina, USA

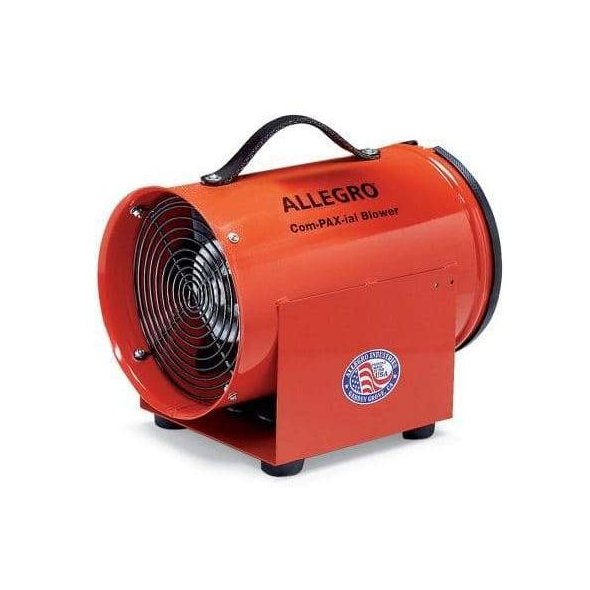

Confined Space Ventilator Fan 8 inch 778 CFM 9534
Lightweight and compact design allows for easy portability without sacrificing performance. Certified to CSA Standard C22.2 No. 113.
FEATURES: Complete unit epoxy powder coated in safety orange 15 gauge cold rolled steel housing with welded motor mount construction 20 gauge steel canister Available with 15 ft or 25 ft ducting and canister Enclosed wide base for greater stability Steel/chrome plated grill Carry handle made of 3-ply rubber belting Equipped with four rubber feet
FAN: Glass reinforced Polypropylene (PPG) six blade fan, with aluminum hub
MOTOR: UL Recognized, CSA Certified 6 ft (1.82m) SJOOW 16/3 AWG, neoprene, 300V medium duty NEMA 5-15 Plug 125V AC
DUCTING: Retractable, non-collapsible design, temperature resistant up to 180°F (82.2°C) Single-ply, PVC coated, vinyl and polyester materials Class 1 hard drawn spring steel wire helix that meets ASTM specs
** FLOW RATE (CFM calculated using 15' (4.57m) of 8" (20.3cm) ducting).
