Specs for Confined Space Ventilator Blower 12 inch 2202 CFM 9509-50
Item #: 9509-50
6
12"
Polypropylene
2202
USA
Direct
841459
60
0.5
Yes
1 Phase
15" x 12" x 16"
45 lbs
120
South Carolina, USA

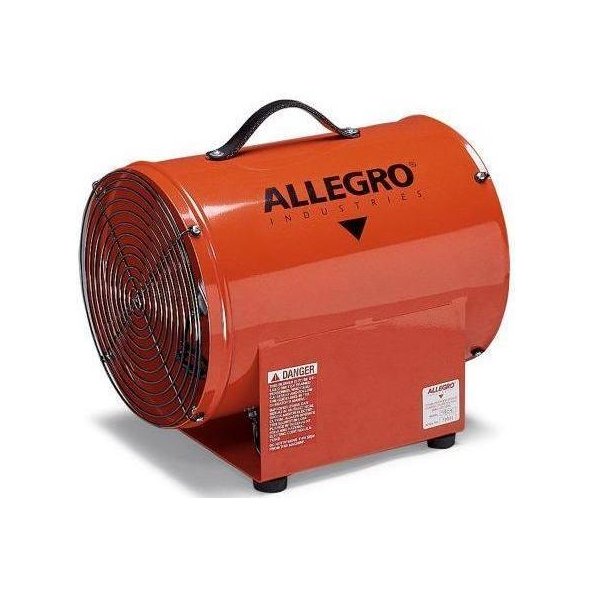

Confined Space Ventilator Blower 12 inch 2202 CFM 9509-50
For applications requiring larger amounts of air output the high output 12" blower offers portability and minimal weight. This blower offers a 1/2 hp motor with an efficient six-blade impeller in a rugged metal housing. Certified to CSA standard c22.2 no. 113.
FEATURES: Complete unit epoxy powder coated in safety orange Ducting may be attached at either flange for intake or exhaust ventilation 16 gauge cold rolled steel housing 14 gauge steel base 3-ply rubber carrying handle Steel black powder coated grill Equipped with four rubber feet
FAN: Glass reinforced polypropylene (PPG) six blade fan, with aluminum hub Moving fan mounted 1 5/8 inches (4.12cm) from grill for safety Grill gap-5/16 inches (.79cm)
MOTOR: UL recognized, CSA approved 25 ft (7.62m) 16/3 AWG, SJTW 105c 300v medium duty NEMA 5-15 plug (grounded three-prong) Toggle on/off switch
** Flow rate (CFM calculated using 15' (4.57m) of 12" (30.4cm) ducting): DIMENSIONS: 15" h x 12" w x 15 1/2" l
