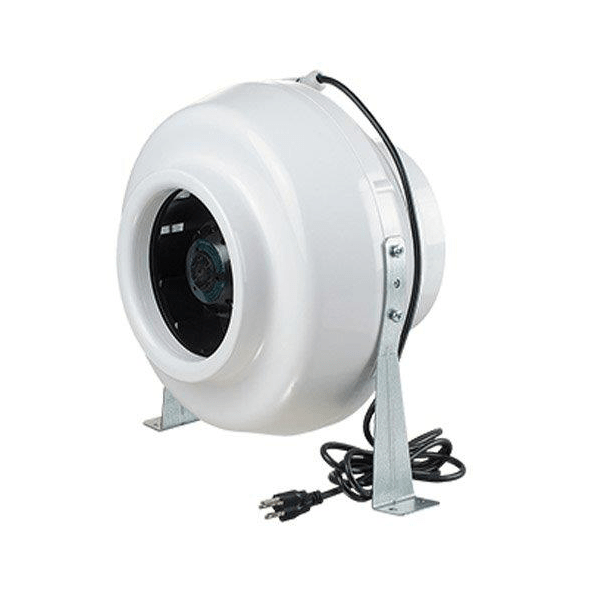

VK Centrifugal Duct Inline Fan 12 3/8 inch 871 CFM VK 315

The VENTS VK Series duct mounted centrifugal inline fans are suitable for a wide range of residential and commercial exhaust or supply air applications, such as bathrooms, kitchens, restaurants or equipment cooling. The VENTS VK inline fans assure efficient and reliable operation. The fans' casing is made of high quality, UV-resistant plastic (flame rating - 5VA). The VENTS VK fans are specially designed for simple installation and years of maintenance free operation. The VENTS VK fans are supplied with an easy to fit mounting bracket and can be mounted at any angle and at any point along the duct.

FEATURES
High static pressure applications
Backward curved centrifugal impeller
Quiet external rotor motor with thermal overload protection
Ideal for long duct runs
Quiet and powerful
Vibration free operation
Energy efficient
Maintenance free
Easy installation
Corrosion resistant
UV resistant, UL94 certified plastic
Pre-wired and supplied with mounting bracket for easy installation
ETL listed
Suitable for working air streams up to 149°F
