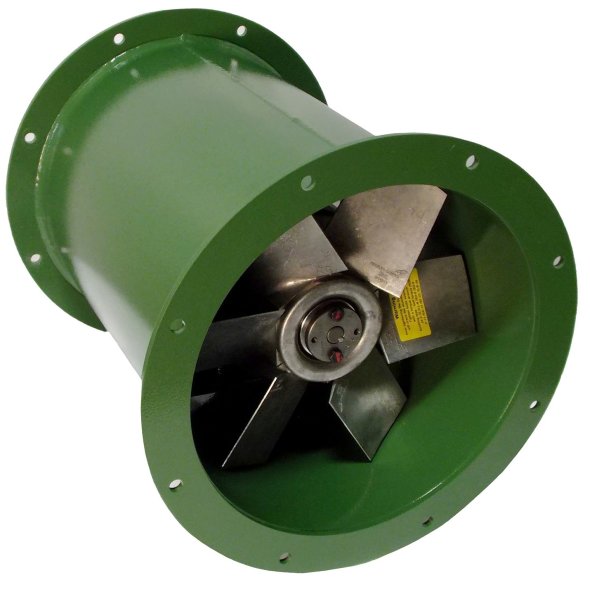

Specs for DDA Tube Axial Fan 12 inch 1450 CFM Direct Drive DDA12T10033B
Item #: DDA12T10033B
12"
Cast Aluminum
1450
US
Direct
841459
60
0.33
Yes
1 Phase
16" x 16" x 17"
37 lbs
1450
1 Speed
120 / 240
1 Year
New York, USA
DDA Tube Axial Fan 12 inch 1450 CFM Direct Drive DDA12T10033B
NOTE: FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.
Used in applications where motor in air stream is satisfactory
FEATURES Direct Drive for minimum maintenance and maximum efficiency. TEFC motors are standard.Cast aluminum blades are standard Maximum Temperature 100° F dBA ratings shown are measured at 0" static pressure, and should be used as a guideline only Fan blades tested in accordance with AMCA standard 210, figure 12.
