Specs for Confined Space Ventilator Fan 8 inch w/ 15' Duct 1275 CFM 9514
Item #: 9514
3
8"
Polypropylene
1275
USA
841459
60
0.33
Yes
15" x 14" x 28"
35 lbs
120
South Carolina, USA

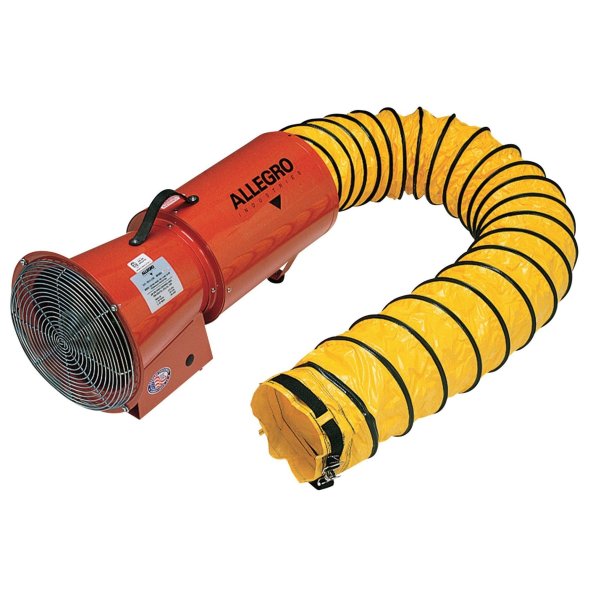

Confined Space Ventilator Fan 8 inch w/ 15' Duct 1275 CFM 9514
This high output compact axial blower is designed for easy use and storage without sacrificing airflow. Allegro's Axial Blower is certified to CSA STD C22.2 No 113. Air delivery is certified CEESI.
FEATURES:
Epoxy powder coated in "safety orange"
Flange on intake side for optional inlet adapter
18 gauge cold rolled steel housing
14 gauge steel enclosed panel to protect electrical components
Welded motor mount construction
Steel/chrome plated grill
Handle made of 3-ply rubber belting and equipped with 4 feet
Switch/Plug: Inline ON/OFF, integrated on cord, NEMA 5-15P 125V
FAN:
Glass reinforced polypropylene (PPG) six blade fan with aluminum hub
Moving fan mounted 1 5/8" (4.12cm) from grill for safety, 5/16" (.79cm) grill gap
DUCTING:
Retractable, non-collapsible design
15 ft duct
Single-ply, PVC coated vinyl and polyester materials, temperature resistant up to 180°F (82.2°C)
Yellow color with black weather strip and integrated nylon straps
Class 1 hard drawn spring steel wire helix that meets ASTM 227 specs.
** FLOW RATE (CFM calculated using 15' (4.57m) of 8" (20.3cm) ducting):
* Cord is 6' (1.82m) AWG 16/3 SJTW 105c 300v neoprene medium duty DIMENSIONS: 15" h x 13 5/8" w x 28" l
