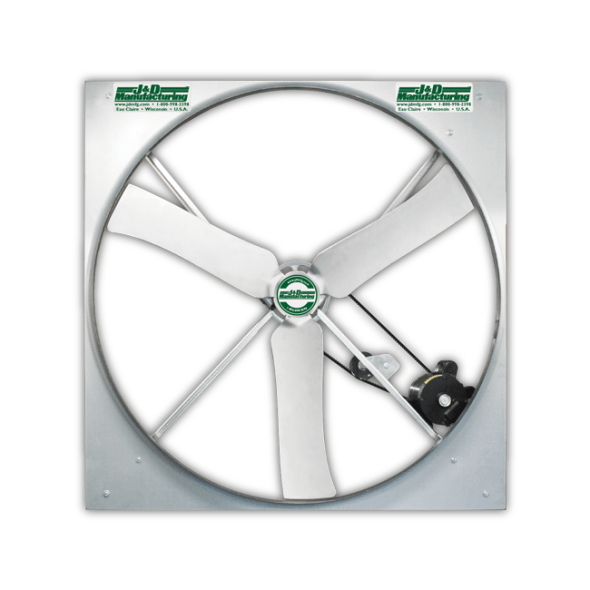

Panel Mount Fan Galvanized Steel Prop 50 inch 21600 CFM 3 Phase Belt Drive VPX50GV31531

NOTE: OSHA Requires these fans to be mounted a minimum of 7 feet above the floor.

J&D Manufacturing's 50", 55" and 60" Panel Fans have a rugged x-frame mount with an efficient motor and a powerful balanced blade designed to create comfortable air velocity. The cushion-mounted maintenance-free bearings and heavy-duty automatic belt tensioning device make this fan one of the highest performing, lowest maintenance, greatest valued fans on the market!

Applications:

Dairy

Industrial

Features:

Heavy-duty, G90 galvanized, 18-gauge venturi with gusset support X-frame provides superior strength and rigidity to minimize vibration compared to angle iron, square, or round tube designs

Pole mounted fans or suspend with chains from the ceiling

Maximize your cooling capabilities by adding a stainless- steel, 12-nozzle, high pressure fog ring kit to the 50", 55", and 60" panel fans

Wide assortment of optional mounting brackets for wood and steel posts for precise airflow

Utilizes an auto belt tensioner to reduce bounce at startup and provide self-adjusting uniform loading throughout the life of the belt for high efficiency

Shaft bearings are eccentric locking, pre-lubricated, permanently sealed and rubber mounted for smooth operation and reduced blade fatigue and are covered by a 3 Year Warranty.

Totally enclosed, maintenance-free, high-efficiency motors have completely sealed ball bearings, UL and CUL recognized, and are covered by a 2 Year Warranty

Hanging / Mounting Choices:

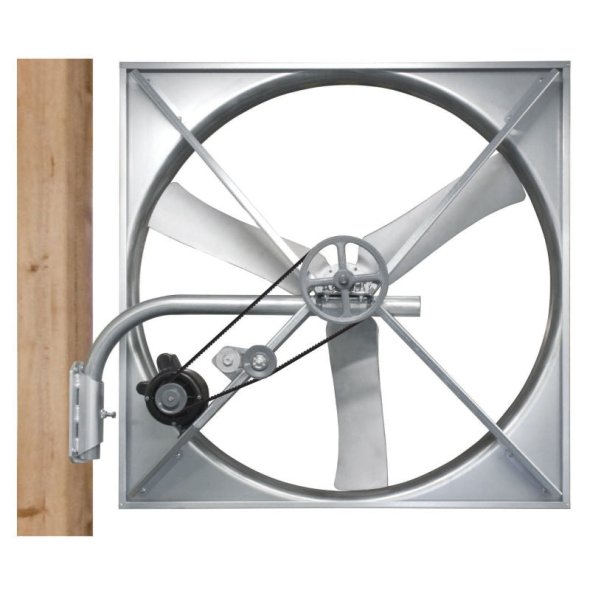

Swivel Offset Mounting Bracket

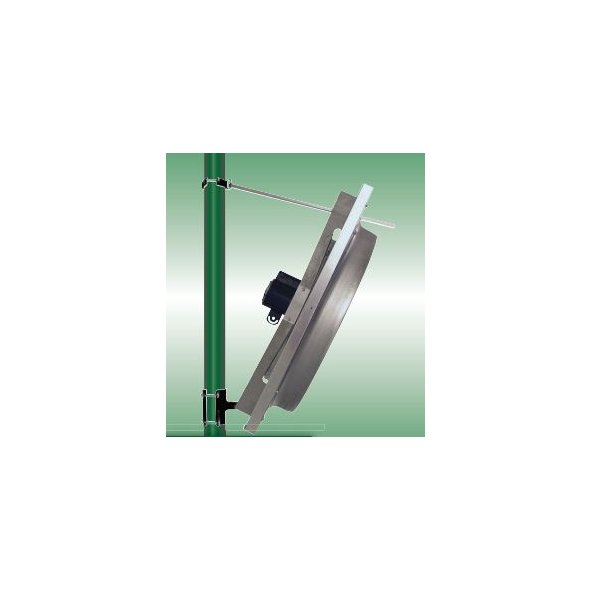

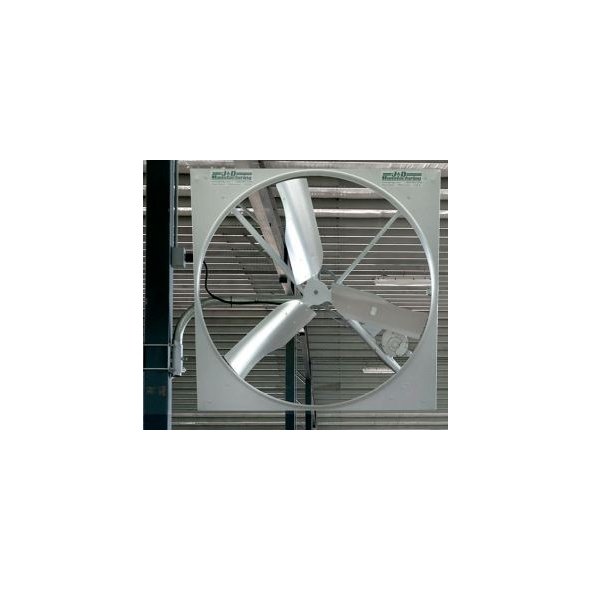

In-Line Column Mounting Bracket

Chain Suspending Kit
