Whirl-Wind Galvanized Box Fan 50 inch 17400 CFM 3 Phase Direct Drive VG50DM3B

NOTE:OSHA Requires this fan to be mounted a minimum of 7' above the floor.

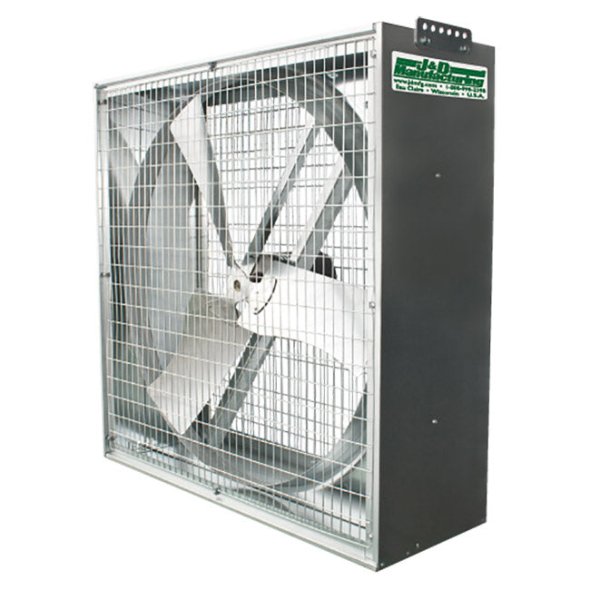

J&D Manufacturing's Whirl-Wind galvanized box fan is leading the market in performance, durability and ease of installation. The Whirl-Wind features a strong galvanized housing, and heavy duty 12 gauge welded wire mesh guards that are hot dip galvanized. Poly guard clips reduce noise and vibration between the housing and guard. Whirl-Wind fans include attached hanging brackets for quick and easy installation in your poultry, dairy or commercial building. The high velocity air pattern provides maximum air flow at the lowest electrical cost.

FEATURES
1" x 2" Mesh guards
12 gauge wire mesh guards are hot dip galvanized after welding for long life
Motors are TE
Available in 24", 36", and 50"
18 gauge galvanized housing
3, 4 or 6 blade balanced high output propeller
Poly guard clips to reduce vibration for quiet performance
Includes attached hanging brackets for easy installation
Shaft bearings are eccentric locking, pre-lubricated, permanently sealed and rubber mounted for smooth operation and reduced blade fatigue.
Totally enclosed, maintenance-free, high-efficiency motors have completely sealed ball bearings.
