SkyBlade Shop Prop 14 foot HVLS Ceiling Fan w/ Remote 15386 Sq Ft Coverage 120 Volt SP-1443-512-1

NOTE: FANS ARE NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.

*Square Footage rating is for heat destratification only. A larger size fan may be needed to feel cooling effects at ground level. Please contact us for sizing recommendations based on your needs.*

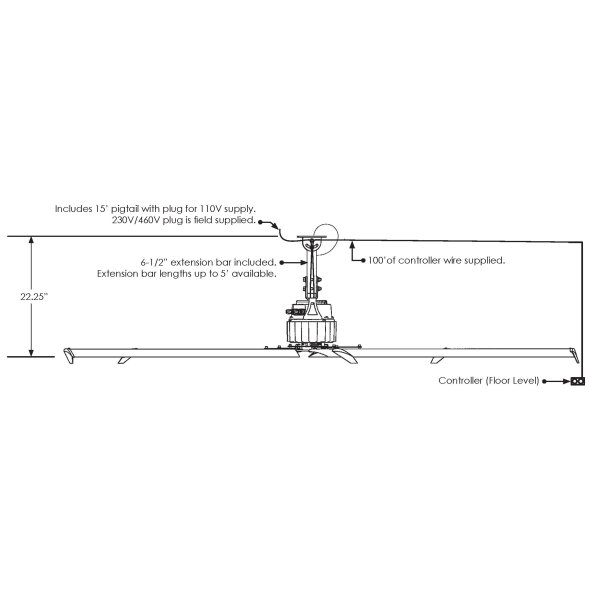

Standard downrod is 6-1/2 Inches. Lengths up to 5ft are available.

SkyBlade's ShopProp HVLS ceiling fan is equipped with five extruded anodized, high performance E420 design aluminum airfoils. Contoured for maximum air movement, so environments become cooler faster. The wingtips are constructed of nylon 66, and can redirect outward airflow into downward airflow to improve and direct airflow downwards.

1/4" powder-coated steel and anodized aluminum resists rusting and corrosion even in cold and damp environments. Stainless steel safety brackets are included. The direct drive system allows this fan to operate incredibly quiet. Totally enclosed direct drive, IP65 rated ECM motor. Onboard VFD is factory assembled and programmed for minimum start/stop torque loads.

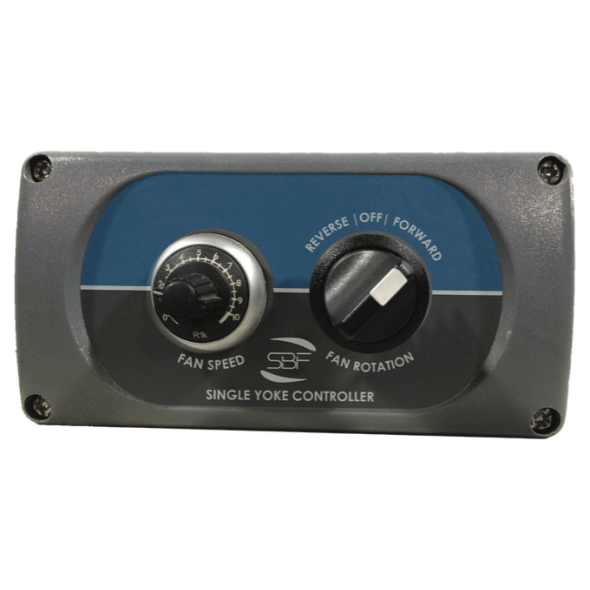

The Single Yoke Control includes a Forward/Reverse switch and 0-10 speed pot to control fan speed. A Single Yoke Control and 100 feet of 6-core shielded cable required for installation is included with each fan.

DESTRATIFICATION
Reduce energy costs up to 30% by minimizing the temperature differential from the ceiling to the floor
Eliminate hot/cold layers
Maintains comfort levels throughout building
Improved employee comfort
Noise produced when operating is close to that of an average library
Less run time on existing HVAC units

COOLING
Create constant airflow to reduce perceived temperatures by 10 to 15 degrees Fahrenheit
Maintains comfort levels throughout the building
More energy efficient than average small high speed fans with much higher air volumes
Minimizes humidity and condensation
