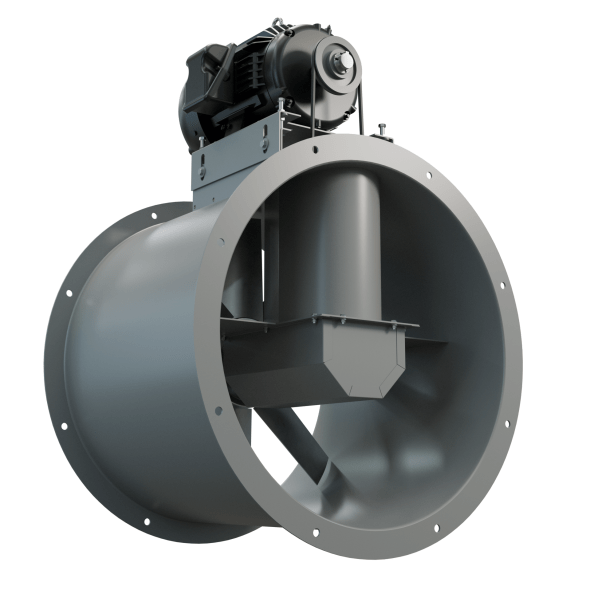

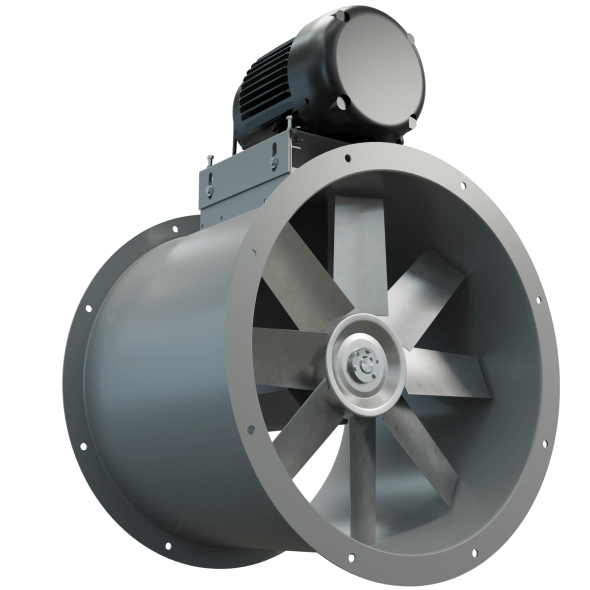

BTA Tube Axial Fan 36 inch 27930 CFM Belt Drive BTA36T10750

NOTE: FANS ARE SPECIAL NON-STOCK ITEMS AND CANNOT BE RETURNED OR CANCELLED.

Designed for duct connected applications such as paint booth exhaust, air make-up fans and general exhaust.

FEATURES
Adjustable motor base.
Heavy duty pillow block ball bearings.
Extended lube lines with external grease fittings.
TEFC motors are standard.
Cast aluminum blades up to 48"; fans 54" & 60" have polypropylene reinforced fiberglass blades.
Airfoil shaped belt tube for improved efficiency;
Motor, belts, drives and bearings are isolated from air stream.
For clean, dry air with a maximum temperature of 200°F (95°C).
Fan blades tested in accordance with AMCA standard 210, figure 12
Cast aluminum blades up to 48"; fans 54" & 60" have polypropylene reinforced fiberglass blades
