Specs for AXP In-Line Duct Fan 5 inch 235 CFM Variable Speed AXP125
Item #: AXP125
1
5"
Plastic
235
56 @ 5 ft
10.6" W x 9.8" H
Direct
5"
841459
0.15
1 Phase
11" x 11" x 10"
5 lbs
Variable Speed
120
5 Year
114
New York, USA

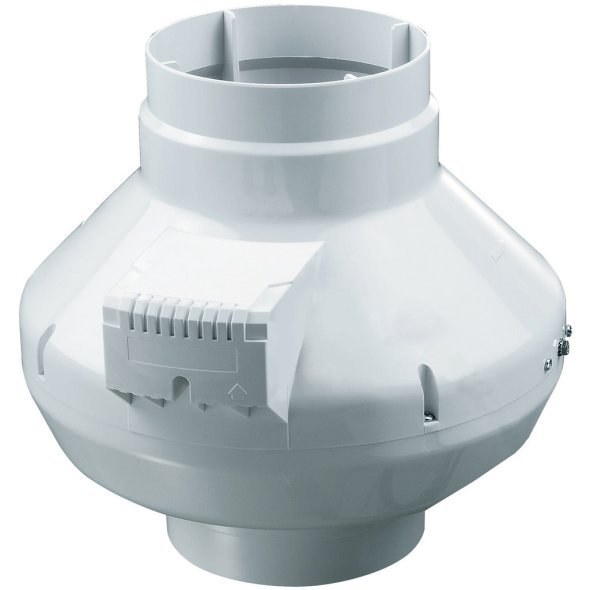

AXP In-Line Duct Fan 5 inch 235 CFM Variable Speed AXP125
AXP In-Line Duct Fans are designed for residential, commercial, and light industrial ventilation applications. There are many locations in a home where air movement may be necessary. Typical uses for AXP in-line duct fans include bathroom exhaust, general kitchen exhaust, duct boosting, and more.
The quiet and efficient backward-curved motorized impeller is capable of developing significant pressure, and the in-line configuration simplifies installation, saving time and money. AXP in-line duct fans incorporate a durable, UV resistant and corrosion resistant plastic housing. They are available in duct diameters from 4" thru 12", and produce airflow capacity up to 837 cfm. Capable of moving airflow through long or complex duct runs, AXP in-line duct fans provide an ideal solution for areas that are hard to heat or cool.
FEATURES UV and corrosion resistant, durable plastic housing 120V operation, other voltages available Easy to install - mounting brackets included May be mounted in any position Fans may be used to supply or exhaust air Suitable for air temperatures up to 122 F Energy efficient - speed controllable (optional solid state speed control) Exceptionally quiet and efficient BC centrifugal motorized impeller External rotor motor design results in superior motor cooling and durability Permanently lubricated ball bearing motor for maintenance-free operation Automatic reset thermal overload protection Fan and motor are precision balanced for quiet and vibration-free operation Easily accessible, external junction box with pre-wired capacitor Available to fit duct sizes 4" - 12"; airflow capacity to 837 cfm
