Specs for Atlantic Blowers Single Stage Regenerative Blower 1.25 inch 64 CFM 1 Phase AB-101
Item #: AB-101
7.8 / 3.9
1.25"
64
US
841459
60 / 50
0.5
1.25"
Yes
1.25"
1 Phase
12" x 12" x 12"
28 lbs
1 Stage
120 / 240
1 Year
Texas, USA

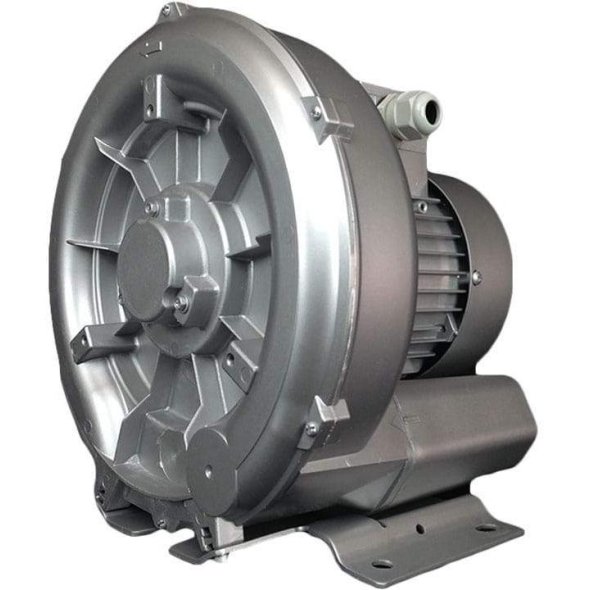

Atlantic Blowers Single Stage Regenerative Blower 1.25 inch 64 CFM 1 Phase AB-101
NOTE: CORD AND PLUG NOT INCLUDED.
The Atlantic Blowers AB-101 Single Phase/Single Stage Regenerative Blower can be used for various pressure or vacuum applications. The AB-101 produces a maximum flow of 64 CFM.
The maximum pressure and vacuum is 60 in H2O and 52 in H2O respectively. The AB-101 has a power output of 0.5 HP (0.4 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency).
The voltage is 110-120V/220-240V with an FLA rating of 7.8/3.9. Measuring at a distance of 3 ft. the blower will produce a noise level of 61 dbA. The inlet/outlet connection size is 1.25" female NPT.
