Specs for Atlantic Blowers Single Stage Regenerative Blower 1 inch 18 CFM 1 Phase AB-71
Item #: AB-71
1.3 / 0.7
1"
18
USA
841459
60 / 50
0.16
1"
Yes
1"
1 Phase
10" x 10" x 10"
17 lbs
1 Stage
120 / 240
1 Year
Texas, USA
Atlantic Blowers Single Stage Regenerative Blower 1 inch 18 CFM 1 Phase AB-71
NOTE: CORD AND PLUG NOT INCLUDED.
The Atlantic Blowers AB-71 Single Phase/Single Stage Regenerative Blower can be used for various pressure or vacuum applications. The AB-71 produces a maximum flow of 18 CFM. The maximum pressure and vacuum is 22 in H2O and 21 in H2O respectively.
The AB-71 has a power output of 0.16 HP (0.12 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency).

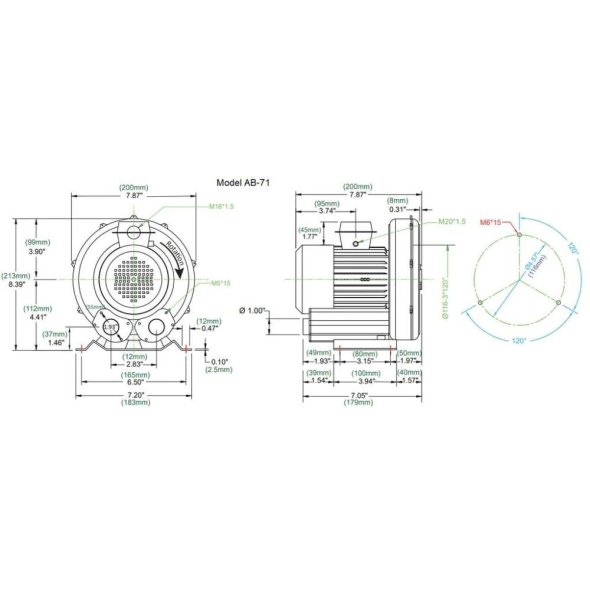

The voltage is 110-120V/220-240V with an FLA rating of 1.3/0.7. Measuring at a distance of 3 ft. the blower will produce a noise level of 51 dbA. The inlet/outlet connection size is 1.00" female NPT.
